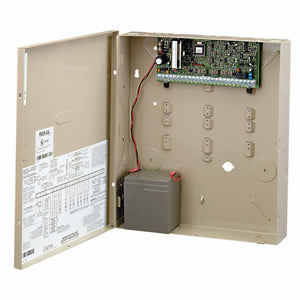

A versatile hardwired and wireless panel for homes, with IP and cellular options.
What it does
The Vista-15P has six on-board zones and supports 16 hardwired expansion zones and 26 wireless expansion zones. It supports four-wire and up to 16 two-wire smokes, two graphic touchscreen keypads, eight keyfob zones, 32 user codes and a 50-event log. It adds Z-Wave control through Tuxedo Touch and VAM. The panel measures 14.5 x 12.5 x 3 in.
Works with
A 6160 keypad programs the panel, and 5800 wireless sensors need a 6160RF, 6150RF or 5881ENH receiver. LTEM-PV and LTEM-PA add Verizon or AT&T LTE on v9.12 or later. It is not for the VISTA H3 or ProSeries.
Why you want it
Handles a house full of hardwired sensors, with room to grow into wireless and home automation.
Specifications
| Works with panels | Hardwired sensors, 5800 wireless with a 6160RF, 6150RF or 5881ENH receiver |
|---|---|
| Onboard zones | 6 hardwired |
| Expansion zones | 16 hardwired, 26 wireless |
| User codes | 32 |
| Event log | 50 events |
| Touchscreen keypads | 2 |
| Size | 14.5 x 12.5 x 3 in |
