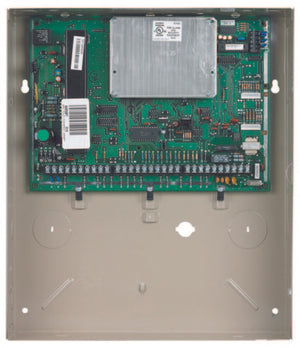

A commercial 128-zone Vista panel with V-Plex polling loop support and eight partitions. It is for larger buildings and installers.
What it does
The Vista-128BPT has nine style-B hardwired zones and up to 119 more on the V-Plex polling loop. It supports up to 127 wireless zones with up to two 5800 receivers, eight partitions, 150 user codes and a 512-event log. The bell circuit delivers 1.7 A at 12 VDC, and it supports up to 96 programmable outputs and up to 16 two-wire smokes on zone 1.
Works with
Use Vista keypads and up to six AUI touchscreens. For V-Plex zones use modules such as the 4208U. Internet upload/download works through AlarmNet communicators on the keypad bus.
Why you want it
It scales far past a home panel, with eight partitions and access control integration.
Specifications
| Works with panels | V-Plex zones (4208U), hardwired sensors, 5800 wireless with a receiver |
|---|---|
| Hardwired zones | 9 style-B |
| Polling loop zones | Up to 119 (V-Plex) |
| Wireless zones | Up to 127 (two 5800 receivers) |
| Partitions | 8 |
| User codes | 150 |
| Event log | 512 events |
| Bell output | 1.7 A at 12 VDC |
| Outputs | Up to 96 programmable |
