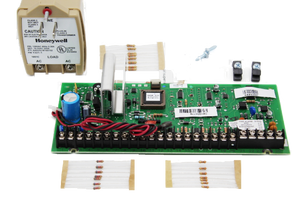

The Vista-20P circuit board with its accessories but without the cabinet, lock or key. It is for replacing a board in an existing can.
What it does
You get the Vista-20P board (firmware version 10.25) and the accessories bundle with transformer, resistors, zone-doubling kit and mounting hardware. There is no metal can, lock or key. The board has 8 hardwired zones (15 with zone doubling) and supports 48 zones, 40 of them wireless.
Works with
Mounts in an existing Vista-20P cabinet. You also need a Vista keypad such as the 6160 or 6160RF, and a 12 V 4-7Ah battery.
Why you want it
A lower-cost way to swap a failed board when your cabinet, lock and wiring are fine.
Specifications
| Works with panels | Hardwired sensors, 5800 wireless with a 6160RF or 5881ENH receiver |
|---|---|
| Panel | Vista-20P board, firmware 10.25 |
| On-board zones | 8 hardwired (15 with zone doubling) |
| Total zones | 48 (up to 40 wireless) |
| Transformer | 16.5 VAC 25 VA |
| Cabinet, lock and key | Not included |
In the box
- Vista-20P board, firmware version 10.25
- Accessories bundle: transformer, resistors, zone-doubling kit, mounting hardware
