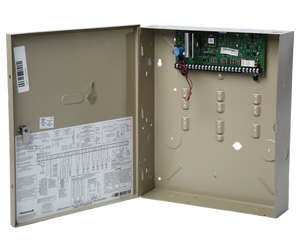

The proven Vista-20P hardwired control panel, firmware version 10.26, with cabinet, transformer, lock and key.
What it does
The Vista-20P is the brain of a hardwired system. It has 8 hardwired zones on board, 15 with the included zone-doubling resistors, and supports up to 48 zones in total, 40 of them wireless. Two-wire smoke detectors can run on zone 1, up to 16 of them. The package includes the board, metal cabinet, transformer, lock and key, resistors and zone-doubling kit. You supply the battery.
Works with
Pair it with a Vista keypad such as the 6160 or 6160RF; 5800 wireless needs a 6160RF, 6150RF or 5881ENH receiver. It needs a 12 V 4-7Ah battery, sold separately. It is not a ProSeries or VISTA H3 part.
Why you want it
You get the whole panel package in one box, so you can mount, wire and program it yourself without paying an installer.
Specifications
| Works with panels | Hardwired sensors, 5800 wireless with a 6160RF, 6150RF or 5881ENH receiver |
|---|---|
| Firmware | Version 10.26 |
| On-board zones | 8 hardwired (15 with zone doubling) |
| Total zones | 48 (up to 40 wireless) |
| Two-wire smokes | Up to 16 on zone 1 |
| Transformer | 16.5 VAC 25 VA |
| Backup battery | 12 V 4-7Ah (not included) |
In the box
- Vista-20P control panel board
- Metal mounting cabinet
- Transformer
- Resistors and zone-doubling kit
- Lock and key set
