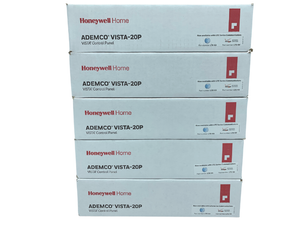

Five Vista-20P panels with their accessory bundles, for installers who need a stack of panels on hand.
What it does
Each of the five panels supports 8 hardwired zones on board (15 with zone doubling), 48 zones in total and up to 40 wireless zones. Two-wire smoke detectors can go on zone 1, up to 16 of them. Each panel comes with its own accessory bundle.
Works with
You need a keypad for each panel, and a 6160 is the one that programs it. For 5800 wireless sensors, add a 6160RF, 6150RF or 5881ENH receiver. Add a 12 V 4-7 Ah battery for each panel.
Why you want it
The bare panel in volume, with the transformer, resistors and cabinet already included for each.
Specifications
| Works with panels | Hardwired sensors, 5800 wireless sensors with a 6160RF, 6150RF or 5881ENH receiver |
|---|---|
| Onboard zones | 8 hardwired (15 with zone doubling) |
| Total zones | 48 |
| Wireless zones | Up to 40 (needs a 5800 receiver) |
| 2-wire smokes | Zone 1, up to 16 detectors |
| Transformer | 16.5 VAC, 25 VA |
| Backup battery | 12 V 4-7 Ah (not included) |
| Panel version | 10.26 |
In the box
- Honeywell Home Vista-20P panel, version 10.26 (5)
- Accessories bundle (transformer, resistors, zone-doubling kit, metal mounting can, lock and key set) (5)
