The interface module required to run i4 combination CO and smoke detectors on a 2-wire panel.
What it does

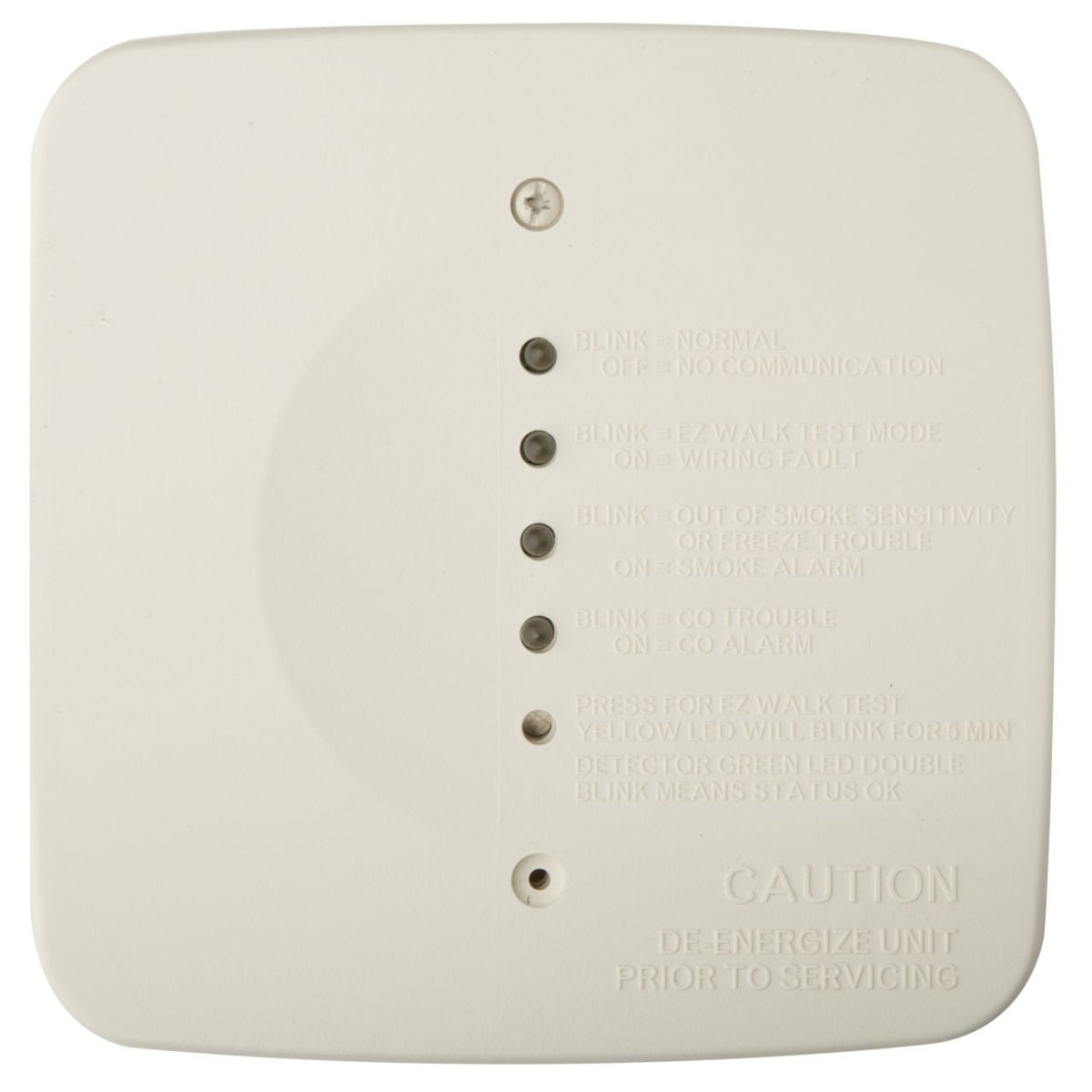

The COSMOD2W lets i4 and i3 series detectors talk to a fire panel, sending separate smoke and CO signals. It has four LEDs, an EZ Walk loop test feature, a 12/24 V nominal input and mounts to a 4-11/16 in square back box. Operating range is 14 to 122 F.
Works with
Required with COSMO-2W detectors on a UL 864 listed panel that can use the module. This is a commercial fire part, not meant for the residential Vista-20P.
Why you want it
EZ Walk lets one person verify loop wiring by checking LEDs at each detector.
Specifications
| Works with panels | COSMO-2W detectors on UL 864 commercial fire panels (not the Vista-20P) |
|---|---|
| Voltage | 12/24 V nominal, 8.5 to 35 V |
| Standby current | 62 mA max |
| Alarm current | 174 mA max |
| Size | 6.04 in diameter, 1.0 in deep |
| Weight | 9.6 oz |
| Temperature | 14 to 122 F |
| Wire gauge | 14-22 AWG |
