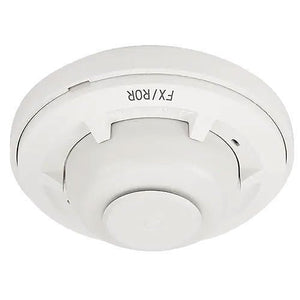

A high-temperature wired heat detector for hot spaces.
What it does
The 5604 is part of the System Sensor 5600 series of mechanical heat detectors. Alarm temperature is 194 F and the maximum installation temperature is 150 F. Terminals accept 14 to 22 AWG wire.
Works with
Wires to a zone on the Vista-20P, VISTA H3 and most 12 V hardwired panels. Check the panel manual for the fire zone type.
Why you want it
A higher alarm point lets it sit in warm areas without nuisance alarms.
Specifications
| Works with panels | Any hardwired alarm panel (Vista-15P, Vista-20P, VISTA H3 and others) |
|---|---|
| Alarm temperature | 194 F |
| Max install temperature | 150 F |
| Circuit | Single |
| Humidity | 5 to 95 percent, noncondensing |
| Terminals | 14-22 AWG |
