An addressable smoke detector for Vista panels that support V-Plex.
What it does

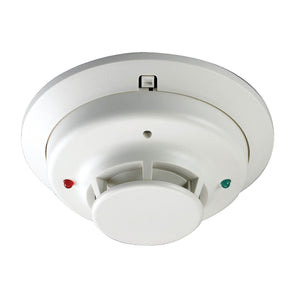

The 5193SD is a ceiling-mount addressable photoelectric smoke detector with an optical sensing chamber and a microprocessor. The LED blinks red every second in alarm. It is tamperproof, UL 268 listed, 5.3 in across and 2 in high.
Works with
Use only with Honeywell Home panels that support V-Plex polling loops. It is not a conventional zone detector, so it does not apply to the Vista-20P.
Why you want it
Each detector reports individually on the polling loop, so you know which one tripped.
Specifications
| Works with panels | V-Plex panels: Vista-128BPT, Vista-128FBPT, Vista-250BPT |
|---|---|
| Sensor | Photoelectric |
| Technology | V-Plex addressable |
| Operating current | LED on 2.8 mA, LED off 1.2 mA |
| Size | 5.3 in diameter, 2 in high |
| Weight | 6.3 oz |
| Temperature | 32 to 100 F |
| Listing | UL 268 |
