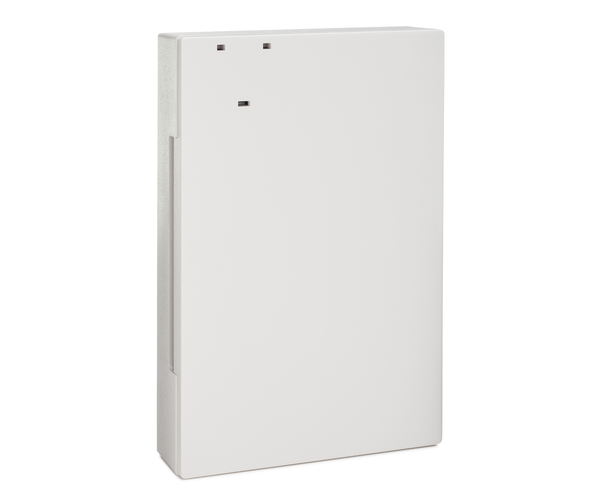

A V-Plex module that lets you add two-wire or four-wire smoke detectors to a V-Plex system, either one by one or grouped into zones.
What it does
The 4209U powers and supervises industry-standard two-wire smoke detectors, and it also supports four-wire smokes. Each loop can handle up to 16 smoke detectors, grouped or not. It can be mounted at the panel or out in the building, and it uses a separate DC input so it does not draw current from the main V-Plex loop.
Works with
Made for V-Plex panels such as the Vista-128BPT, Vista-250BPT and Vista-128FBPT. It does not work with the Vista-20P, which does not support V-Plex. Check the smoke detector UL compatibility listing before you choose detectors.
Why you want it
Covers a large area with smoke detection at a modest cost, with every loop supervised.
Specifications
| Works with panels | V-Plex panels: Vista-128BPT, Vista-128FBPT, Vista-250BPT |
|---|---|
| Smokes per loop | Up to 16 |
| Smoke types | 2-wire and 4-wire |
| Loop supervision | 2K end-of-line resistor (supplied) |
| V-Plex addresses used | 2 or 4 |
| Addressing | Dip switch or serial number |
| Power | Separate DC input |
| Listing | UL864, NFPA 72 |
