Extends the range of your 5800 wireless sensors, such as out to a detached garage or shop.
What it does

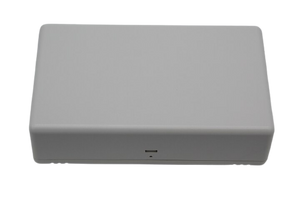

The 5800RP repeats signals from 5800 Series devices so they reach the receiver from farther away. It removes the need to run wire to a second receiver or upgrade to a larger panel that supports two receivers. It must be powered by a K10145WH-1 transformer, which is sold separately.
Works with
Works with the Vista-20P once a 5800 receiver is in place, and with ProSeries panels using a PROTAKEOVER module. The VISTA H3 needs a module we do not carry.
Why you want it
Extends signal to far corners without a second receiver or a longer wire run.
Specifications
| Works with panels | Vista-15P, Vista-20P, Vista-21iP (with a 6160RF, 6150RF or 5881ENH receiver), Lynx Touch, PROA7/PROA7PLUS (with PROTAKEOVER) |
|---|---|
| Type | 5800 Series wireless repeater |
| Frequency | 345 MHz |
| Power | K10145WH-1 transformer (separate) |
| Replaces | A second remote receiver |
In the box
- 5800RP repeater
