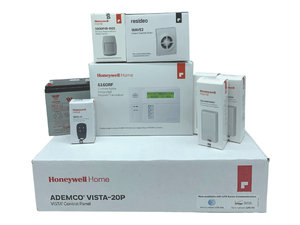

The complete Vista-20P starter package: panel, wireless keypad, three contacts, a motion sensor, key fob, battery, siren and phone jack. Nothing else is needed to power up and program.
What it does
This kit bundles a Vista-20P panel with its cabinet, transformer, lock and key, resistors and zone-doubling kit; a 6160RF keypad with a built-in 5800 wireless receiver; 3 5816WMWH, 1 5800PIR-RES, 1 5834-4 key fob; a 4Ah backup battery; a Wave2 siren; and an RJ31X phone jack and cord, so you can wire and program a complete hardwired system yourself. The panel has 8 hardwired zones on board (15 with zone doubling) and supports 48 zones in total, 40 of them wireless.
Works with
The Vista-20P is a hardwired panel. The 6160RF keypad has the 5800 receiver, so the included wireless devices work right away; use one receiver per panel and do not combine it with a 5881ENH. The RJ31X jack lets the panel dialer use a home phone line; an AlarmNet communicator is an alternative.
Why you want it
The battery, siren and RJ31X jack are already in the box, so you can get the panel running the day it arrives.
Specifications
| Works with panels | Hardwired sensors, 5800 wireless (receiver built into the 6160RF keypad) |
|---|---|
| Panel | Vista-20P, firmware 10.26 |
| On-board zones | 8 hardwired (15 with zone doubling) |
| Total zones | 48 (up to 40 wireless) |
| Keypad | 6160RF with 5800 receiver |
| Transformer | 16.5 VAC 25 VA |
| Backup battery | 12 V 4Ah Yuasa included |
| Wireless devices | 3 5816WMWH, 1 5800PIR-RES, 1 5834-4 key fob |
| Siren | Wave2 two-tone, hardwired |
In the box
- Honeywell Home Vista-20P control panel, firmware version 10.26
- Accessories bundle: transformer, resistors, zone-doubling kit, metal mounting can, lock and key set
- Honeywell 6160RF keypad
- 3 x 5816WMWH wireless door/window contact with magnet
- 1 x 5800PIR-RES wireless motion sensor
- 1 x 5834-4 4-button wireless key fob
- 1 x Yuasa 12 V 4Ah backup battery
- 1 x Wave2 two-tone siren
- 1 x RJ31X jack and cord
