A Vista-20P panel kit with the keypad, backup battery, siren and phone jack to get started.
What it does
This kit gives you a hardwired Vista-20P v10.26 with a 6160 alpha keypad that programs the panel. It has 8 hardwired zones on board (15 with zone doubling), 48 zones in total and room for up to 40 wireless zones. The kit adds a 12 V 4 Ah Yuasa battery, a Wave 2 siren and an RJ31X jack and cord.
Works with
Add sensors and contacts, and a 6160RF or 5881ENH receiver for 5800 wireless. For monitoring, use an AlarmNet communicator such as an LTEM-PV or LTEM-PA, activated by a dealer. Not for ProSeries or the VISTA H3.
Why you want it
A strong starting kit with the main pieces in one box.
Specifications
| Works with panels | Hardwired sensors, 5800 wireless once a 6160RF or 5881ENH receiver is added |
|---|---|
| Onboard zones | 8 hardwired (15 with zone doubling) |
| Total zones | 48 |
| Wireless zones | Up to 40 |
| Transformer | 16.5 VAC, 25 VA |
| Battery | 12 V 4 Ah Yuasa (included) |
| Panel version | 10.26 |

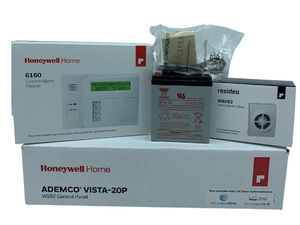

In the box
- Honeywell Home Vista-20P panel, version 10.26 (1)
- Accessories bundle (transformer, resistors, zone-doubling kit, metal mounting can, lock and key set) (1)
- Honeywell 6160 keypad (1)
- Premium Yuasa 12 V 4 Ah battery (1)
- Wave 2 siren (1)
- RJ31X jack and cord (1)
