The 7939WG-GY is a gray surface-mount wired contact for doors and windows, residential or commercial.
What it does
The contact has two screw terminals for the zone wires, plus a cap to cover them, a matching magnet and spacers. Mount the contact on the frame and the magnet on the door or window with no more than a 1-1/4 inch gap when closed. Use screws or double-sided adhesive strips.
Works with
Works with the Vista-20P, VISTA H3 and most 12 V hardwired panels as a zone device. No receiver is needed. Many contacts can be wired in series on one zone.
Why you want it
The cover conceals the end-of-line resistor for a neat finish on gray frames.
Specifications
| Works with panels | Any hardwired alarm panel (Vista-15P, Vista-20P, VISTA H3 and others) |
|---|---|
| Color | Gray |
| Standard gap | 1-1/4 in (32 mm) |
| Terminals | 2 screw terminals |
| Mounting | Screws or adhesive strips |
| Use | Residential and commercial |

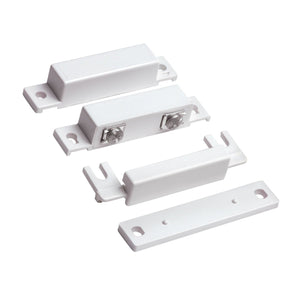

In the box
- Magnetic contact
- Magnet
- Terminal cover
- Spacers
- Screws
