A small surface contact with screw terminals, well suited to windows.
What it does

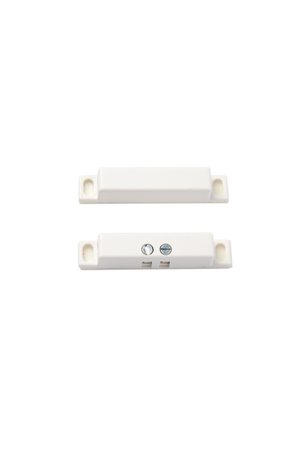

The 945T-WH is a miniature surface-mount magnetic contact. It mounts with screws or adhesive and has screw terminals, so no wire splicing or soldering is needed. The standard gap is 1 in (25 mm).
Works with
A normally closed loop device that wires to a zone on the Vista-20P, VISTA H3 and most 12 V hardwired panels.
Why you want it
Its small size looks neat on window frames and the terminals make wiring quick.
Specifications
| Works with panels | Any hardwired alarm panel (Vista-15P, Vista-20P, VISTA H3 and others) |
|---|---|
| Type | Miniature surface mount contact |
| Standard gap | 1 in (25 mm) |
| Connections | Screw terminals |
| Mounting | Screws or adhesive |
| Color | White |
| Wiring | Normally closed loop |
