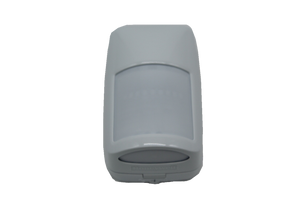

A hardwired PIR plus microwave detector for rooms that give plain PIRs trouble.
What it does
The DT8035V needs both PIR and microwave to see motion before it alarms. It covers 40 by 56 ft, runs on 9 to 15 VDC and has cover and wall tamper switches.
Works with
Wires to a zone and 12 V power on the Vista-20P, VISTA H3 and most 12 V hardwired panels.
Why you want it
Needing both technologies to agree cuts false alarms from heat, drafts and sunlight.
Specifications
| Works with panels | Any hardwired alarm panel (Vista-15P, Vista-20P, VISTA H3 and others) |
|---|---|
| Coverage | 40 x 56 ft |
| Power | 9-15 VDC, 15 mA typical, 17 mA max |
| Technology | PIR plus microwave |
| Microwave frequency | 10.525 GHz |
| Tampers | Cover and wall |
| White light immunity | 6500 lux |
| Dimensions | 3.86 x 2.24 x 1.71 in |
