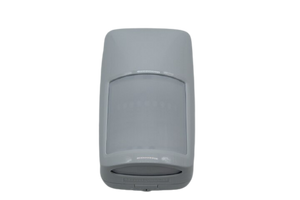

A long-range dual technology motion detector for large open rooms.
What it does
The DT8050V combines passive infrared and 10.525 GHz microwave sensing and covers 53 by 72 ft (16 by 22 m). It runs on 9 to 15 VDC and has cover and wall tamper switches.
Works with
Wires to a zone and 12 V power on the Vista-20P, VISTA H3 and most 12 V hardwired panels.
Why you want it
The extra reach covers a great room, and needing two technologies to agree resists false alarms from heat and drafts.
Specifications
| Works with panels | Any hardwired alarm panel (Vista-15P, Vista-20P, VISTA H3 and others) |
|---|---|
| Coverage | 53 x 72 ft (16 x 22 m) |
| Power | 9-15 VDC, 15 mA typical, 17 mA max |
| Technology | PIR plus microwave |
| Microwave frequency | 10.525 GHz |
| Tampers | Cover and wall |
| White light immunity | 6500 lux |
| Dimensions | 3.86 x 2.24 x 1.71 in |
