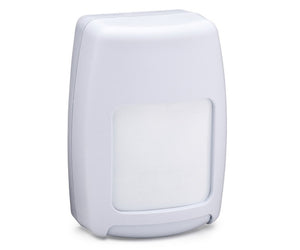

The 5800PIR-COM is a long-range wireless PIR with a back tamper switch, made for commercial installs and large rooms.
What it does
Coverage is 60 x 85 feet or 100 x 20 feet. It has no jumpers or switches, and an automatic walk test turns on the LED for ten minutes. An optional cold temperature alert warns when temperatures approach freezing. The case can be painted to match the room.
Works with
Works with Vista panels that have a 6160RF, 6150RF or 5881ENH receiver, natively on Lynx Touch, and on ProSeries with a PROTAKEOVER module. It does not work on the VISTA H3 without a module we do not stock.
Why you want it
Long-range patterns and a back tamper switch suit shops, warehouses and big open rooms.
Specifications
| Works with panels | Vista-15P, Vista-20P, Vista-21iP (with a 6160RF, 6150RF or 5881ENH receiver), Lynx Touch, PROA7/PROA7PLUS (with PROTAKEOVER) |
|---|---|
| Coverage | 60 x 85 ft or 100 x 20 ft |
| Tamper | Back tamper switch |
| Cold alert | Optional, below 45 F |
| Walk test | Automatic, LED on for 10 minutes |
| Frequency | 345 MHz, 5800 series |
