Add 8 more hardwired zones (16 doubled) to the H3, up to 64 total.
What it does

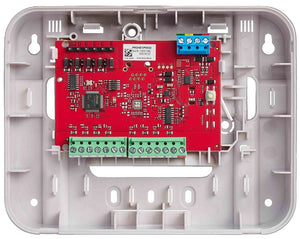

This module adds 8 hardwired zones, or 16 with zone doubling. It is supervised, so cut wiring raises a supervision alarm, and has a built-in cover tamper. It mounts on a wall or gang box, has removable terminal strips and draws power from the H3 with battery backup.
Works with
Works only with the VISTA H3 panel, which supports up to 8 modules for a maximum of 64 hardwired zones.
Why you want it
Lets you wire more doors, windows and motions without replacing the panel.
Specifications
| Works with panels | VISTA H3 |
|---|---|
| Zones per module | 8 (16 with doubling) |
| Max modules | 8 per H3 |
| Power | From the VISTA H3 |
| Operating temp | 32 to 122 F |
| Humidity | 0 to 95% |
| Listing | NFPA 72 compliant |
