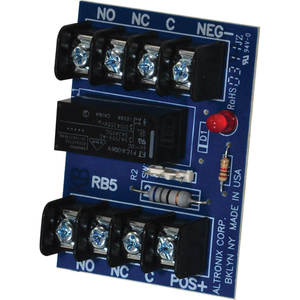

A general-purpose relay for switching a heavier load from a small signal, such as a door strike, a light or a fan.
What it does
The RB5 runs on 6 or 12 VDC and draws 120 mA. Its double-pole double-throw contacts are rated 5 A at 220 VAC or 28 VDC, so one trigger can switch two circuits.
Works with
Works with panels and modules that have a 6 or 12 VDC output, such as the Vista-20P and its relay outputs. Check that your load stays within the contact ratings.
Why you want it
Lets a small panel output control a larger load safely.
Specifications
| Works with panels | Any hardwired alarm panel (Vista-15P, Vista-20P, VISTA H3 and others) |
|---|---|
| Coil voltage | 6 or 12 VDC |
| Current draw | 120 mA |
| Contacts | DPDT |
| Contact rating | 5 A at 220 VAC or 28 VDC |
