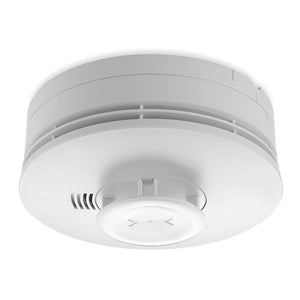

A wireless multi-criteria detector that replaces the 5808W3, with no fire wiring needed.
What it does
The 5800SMOKEV senses smoke, heat, rate-of-rise and low temperature, and has an 85 dBA sounder. It runs on two CR123A lithium batteries with about 5 years of typical life. It meets UL 268 7th edition and mounts on the ceiling at up to 50 x 50 ft spacing.
Works with
Works on a Vista-20P with a 6160RF, 6150RF or 5881ENH receiver, and on ProSeries panels with a PROTAKEOVER module. It is not supported on the VISTA H3 without an extra module this store does not carry.
Why you want it
One battery-powered head catches smoke, heat and rapid temperature rise.
Specifications
| Works with panels | Vista-15P, Vista-20P, Vista-21iP (with a 6160RF, 6150RF or 5881ENH receiver), PROA7/PROA7PLUS (with PROTAKEOVER) |
|---|---|
| Sounder | 85 dBA at 10 ft |
| Battery | 2 x CR123A lithium |
| Battery life | 5 years typical |
| Heat | 135 F fixed, rate-of-rise 15 F/min |
| Low temperature alert | 41 F |
| Size | 4.74 in diameter, 2.31 in deep |
| Weight | 5.8 oz without batteries |
| Color | White |
