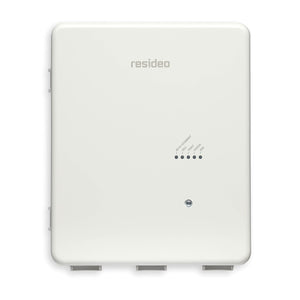

An advanced modular AT&T LTE communicator with ethernet and an optional Wi-Fi add-on. It gives Vista panels dual-path reporting.
What it does
The LTEM-PXA runs on LTE Cat M1 and is powered by the control panel, so no separate power supply is needed. It can add Wi-Fi with the PROWIFI add-on, or Wi-Fi plus automation with PROWIFIZW. Your dealer can program Vista-15P, 20P and 21iP panels through AlarmNet 360.
Works with
Works with Vista-15P and 20P (V9.12+), 21iP (V3.13+), 128BPT (V10.0+) and 250BPT (V10.3+). The PRODCM module lets it take over other panels.
Why you want it
Cellular and internet paths together, powered right from the panel.
Connects through AlarmNet. Must be activated by an alarm dealer and carries a monthly fee that covers 24/7 professional UL central station monitoring and the Total Connect app. Contact a local alarm dealer before you order.
Specifications
| Works with panels | Vista-15P, Vista-20P, Vista-21iP, Vista-128BPT, Vista-250BPT |
|---|---|
| Carrier | AT&T |
| Network | LTE Cat M1 |
| Power | 8-13.8 VDC from panel |
| Size (H x W x D) | 9 x 7.3 x 1.7 in |
| Weight | 16.5 oz |
| Color | White |
| Operating temp | 32 to 120 F |
| Approvals | ETL: UL 1610, 1023, 365; meets 985 |
| Use | Indoor |
